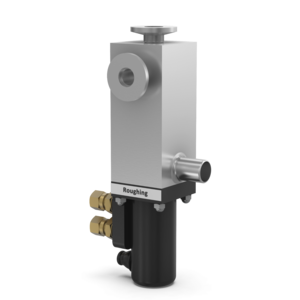

Backing/Roughing Valve - BRV10PK - Pneumatic NW10, C32104000
Part Number: C32104000
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C32104000 | - | |
| C32303500 | DN 25 ISO-KF (NW25) | |
| C32304000 | DN 25 ISO-KF (NW25) |
BRV - Backing Roughing Valve
Edwards backing/roughing valves with ISO NW roughing and fore pump terminations feature manual or pneumatic actuation. They combine the function of separate backing/roughing valves in one integral 3 port unit.
A flexible neoprene connector is supplied for the backing connection. The roughing and fore pump ports terminate in the appropriate NW flange.
General Product Information
| Valve Actuation Method | Pneumatic |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| 5-Port Electropneumatic Control Valve 230V AC (to be used with BRVPK, QSBP), B28703032 | B28703032 | - | |
| 5-Port Electropneumatic Control Valve 110V AC (to be used with BRVPK, QSBP), B28703031 | B28703031 | - | |
| 5-Port Electropneumatic Control Valve 24V AC (to be used with BRVPK, QSBP), B28703030 | B28703030 | - | |
| 5-Port Electropneumatic Control Valve 24V DC (to be used with BRVPK, QSBP), B28703055 | B28703055 | - |
