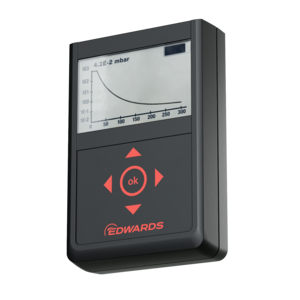

P5 Gauge (Bluetooth) - NW16, D03000650

Portable Gauging

Portable gauging offers the opportunity to easily take spot measurement checks.

Thanks to it being mains power independent, the Edwards P3 handheld all-in-one measuring system is the essential device for:

Also available is the accessory pack, which not only gives you a case in which to transport the gauge, avoiding damage in transit, but also some dedicated PC software and mains cable to enable longer term measurement tracking and logging, past the standard onboard datalogging. This can enable pressure rise leak testing on large/underground systems where standard leak checking is not viable.

Features and Benefits

• Variably applicable: The P5 compact vacuum meter measures absolute pressure from Abs. 1200 - 5e-5 mbar ((900 - 5e-5 Torr))
• Big graphic display: The integrated display and a 4+1 membrane keypad allow intuitive menu navigation. Measured values and pressure curves can directly be read out on-site.

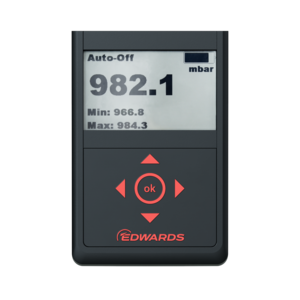

• Precise solutions: The compact vacuum meters' displays show absolute and relative pressure as well as the lowest and highest value of a measurement cycle. Temperature-compensated sensors and advanced electronics guarantee precise and reproducible measuring results.
• Rate of rise measurement: Our P5 is perfectly suited for the long-term control of the increase in pressure to secure the tightness of vacuum chambers and vacuum systems.
• Connection: The different models can easily be connected to vacuum pumps or vacuum equipment by use of standard vacuum fittings. Furthermore, they can be put directly into a vacuum chamber. Adaptors for different flange sizes, threads, and hoses are also available.
• Comfortable data saving: The P5 compact vacuum meter features an integrated data logger and save multiple measurement series, recording them with their RTC data.
• USB-C /Bluetooth® LE: The USB-C interface – or optional Bluetooth® LE for wireless data transfer – allows a direct readout of the measured data and the export of measurement series stored in the data logger.
• Data analysis: The VacuGraph™ software can be used to read out the data logger, as well as for an easy visualization and analysis of the measured data. This is especially beneficial in applications where data must be documented e.g., by saving and comparing pump-down characteristics for audits and quality assurance.
